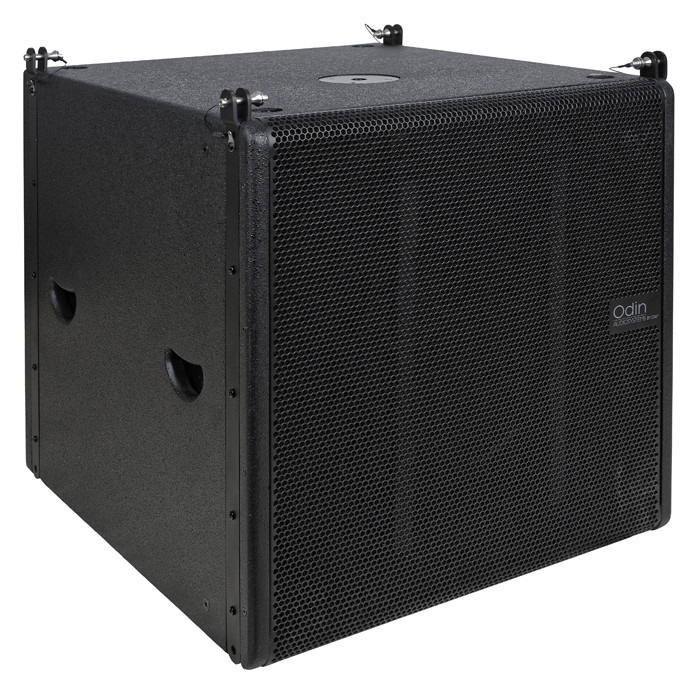

DAP Odin S-18A Active Line-Array Subwoofer


1500 W / 136 dB SPL @ 1 m
18″ Celestion Ferrite Magnet subwoofer with 4″ voice coil
Class-D Amplifier
Configurable DSP-optimised amplification
Quick and easy setup (4-point suspension system)

The DAP Odin S-18A is a versatile active Line Array Subwoofer suitable for small to big crowds. For a punchy full-range sound, you can hang or stack this 1500 W Class D subwoofer (6000 W peak) together with DAP Odin T-8A satellites by using the DAP Odin FB-02 stack bar as adapter and the DAP Odin FB-01 as fly bar.

The S-18A is equipped with an 18″ Celestion Ferrite Magnet subwoofer containing a 4″ voice coil producing up to a staggering 136 dB SPL @ 1 meter distance. The DSP settings are configurable for making sure that the S-18A delivers under any circumstance and any setup. Several DSP presets are also available, including ”Cardioid” mode.

Building a complete Odin Line Array set can be done by just one person due to its 4-point suspension system. Not only is the setup quick and labour saving, it also is a very modular system, allowing different setups to fit any location. You can use the optional 35 mm pole mount adapter to arrange a Satellite setup. Or integrate the optional stack frame or fly bar and use the suspension points to arrange a stack or Line Array setup which suits your venue best.

Free Odin Editor software in combination with the CL-4 Connect allows to adjust the EQ, gain and delay freely per speaker or group of speakers from your Windows PC/laptop. It’ll also allow you to see live information about each speaker, such as amplifier temperature and high/low output. EASE Focus 3 software can be used to calculate the Splay Angle and ”Throw”. A plug-in has been developed for adding our speakers to its database.

Please note that powerCON cables & network cable are not included but are to be ordered separately.
